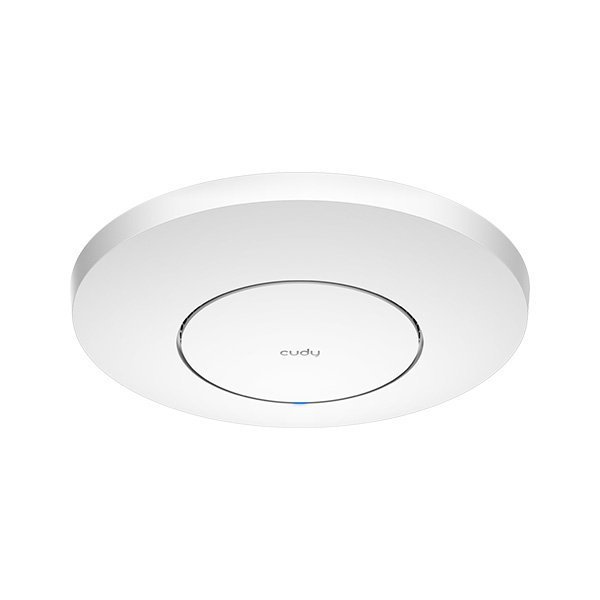

Cudy AP1300 Indoor AC1200 Dual Band Indoor Ceiling Mount Gigabit Wi-Fi Access Point (Dual Core Processor)

Model Version: AP1300 1.0
1-Year Official Warranty
CPU: MT7621DAT+MT7613BEN+MT7603EN, 880 MHz Dual-Core
Memory/Storage: 16 MB Flash, 128 MB DDR3 RAM
Wireless:
5 GHz: 867 Mbps, 2T2R (2×2 MIMO)
2.4 GHz: 300 Mbps, 2T2R (2×2 MIMO)
Wi-Fi Antennas: 4× Internal
Range Performance: Max 120 m (394 ft)
Wi-Fi Transmission Power:
CE: <20 dBm (2.4 GHz), <23 dBm (5.15 GHz ~ 5.35 GHz) FCC: <24 dBm (5.25 GHz ~ 5.35 GHz & 5.47 GHz ~ 5.725 GHz), <30 dBm (2.4 GHz & 5.15 GHz ~ 5.25 GHz) Interfaces: 1 Gigabit RJ45 Port, accepts PoE powering Power Input: DC Jack, PoE via Ethernet Port Power: Max Power Consumption (PoE): 11 W, Max Power Consumption (DC): 7.5 W, Idle Power Consumption: 4.008 W Reliability: Watchdog, ESD Air Protection: 4kV, ESD Contact Protection: 8kV Environment: Operating Temperature: -10 ℃ ~ 65 ℃, Storage Temperature: -40 ℃ ~ 70 ℃, Operating Humidity: 10% ~ 90% non-condensing, Storage Humidity: 5% ~ 90% non-condensing Mechanical: Wall-Mounting, Ceiling-Mounting Dimension: Φ231.9×57.1 mm (Φ9.13×2.25 inches) Package Content: Main Product, Power Adapter, Mounting Kit, Ethernet Cable, Installation Guide Wi-Fi Standards: Wi-Fi 5, Max Wi-Fi Modulation: 256-QAM, MU-MIMO available on 5 GHz General Operation Modes: Wi-Fi Router, Access Point, Range Extender, WISP, Client, Cudy Mesh Mesh Backhaul: Wireless Backhaul, Wired Backhaul, Multi-Band Backhaul WAN Mode: DHCP, Static IP, PPPOE QoS: Per-User Rate Limiting DHCP: Address Reservation, DHCP Client List, Server IP Versions: IPv4/IPv6 IPTV/VLAN: Bridge, Tag VLAN IGMP: IGMP Proxy, IGMP Snooping Forwarding: Port Forwarding, Port Triggering, UPnP, DMZ Firewall: SPI Firewall, DoS Protection, Block PING Application Layer Gateway: IPSec Passthrough, L2TP Passthrough, PPTP Passthrough, FTP Passthrough, TFTP Passthrough, H323 Passthrough, SIP Passthrough, RTSP Passthrough Utilities: VPN Server (WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP), VPN Client (WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP), DNS Options (DNS over TLS, Manual DNS, Rebind Protection, Override Clients’ DNS), Captive Portal, Wake on LAN, Online Detection Management: All Devices Management (Wi-Fi Time Schedule, MAC Filter, IP/MAC Binding), Per-Devices Management (Internet On/Off, VPN On/Off, Online Time Schedule, Device Rename), Content Management (Domain Filter, IP Filter)
